FIT CTU

Adam Vesecký

vesecky.adam@gmail.com

Lecture 3

Assets

APH.DODO.ME

Architecture of Computer Games

Adam Vesecký

Introduction to Assets

What are assets?

Everything that is specific to a game (and not to an engine).

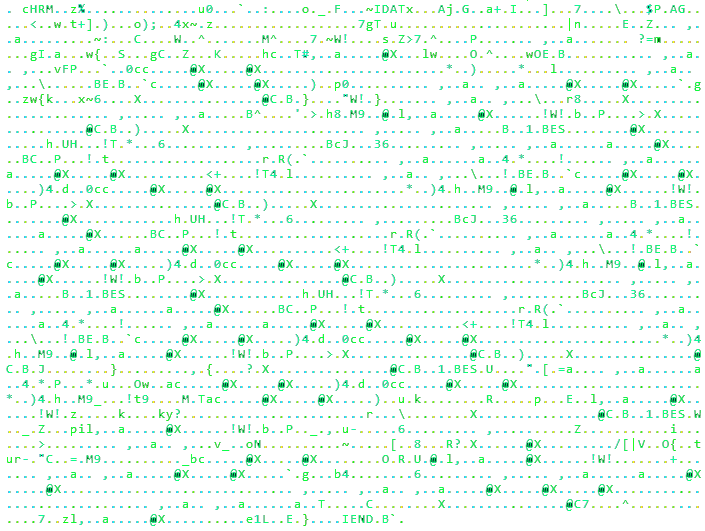

Any piece of data which is in a format that can be used by the game engine.

All visual elements that are presented to the user and protected by copyright.

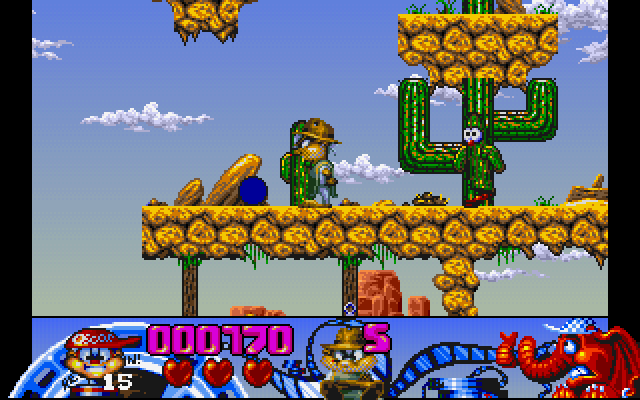

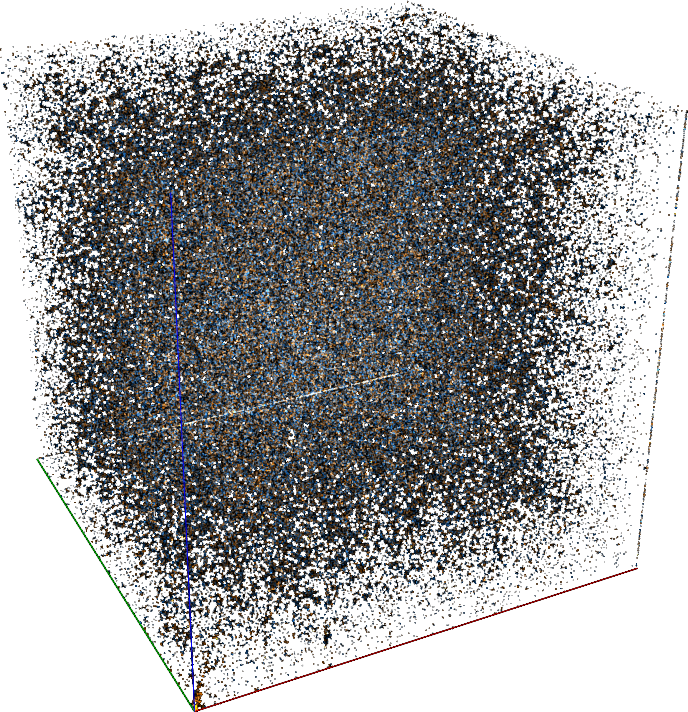

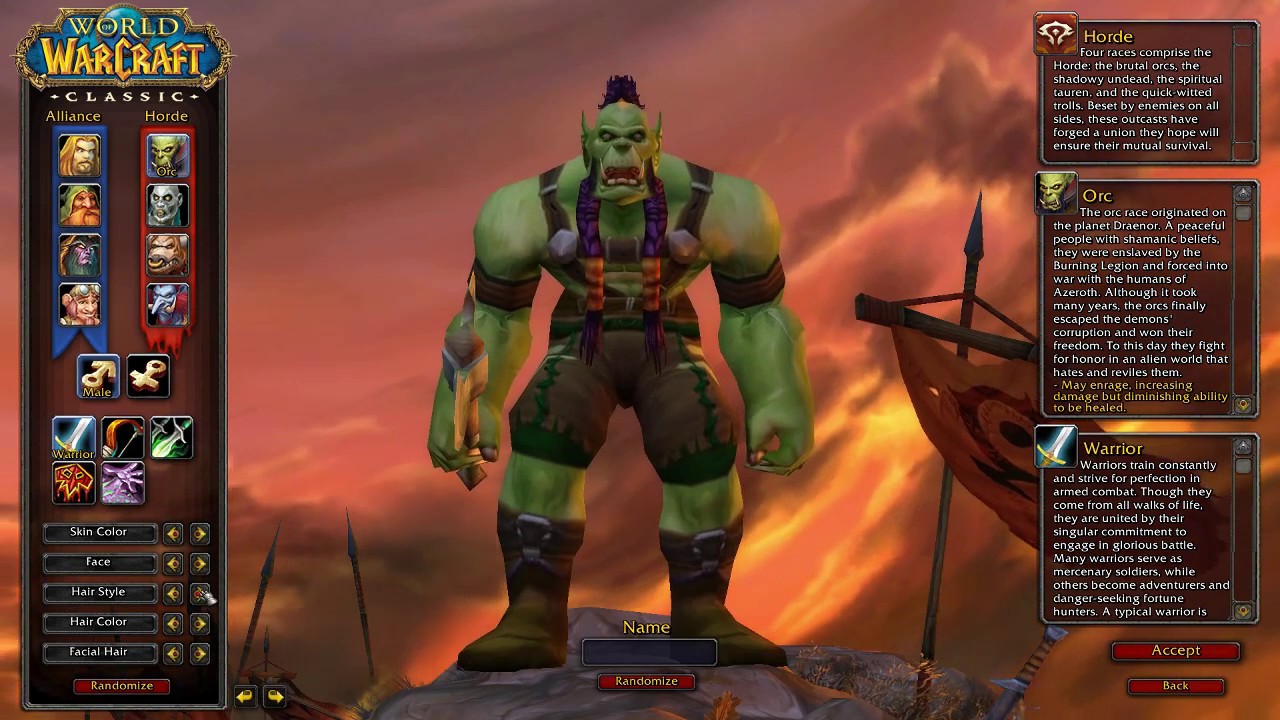

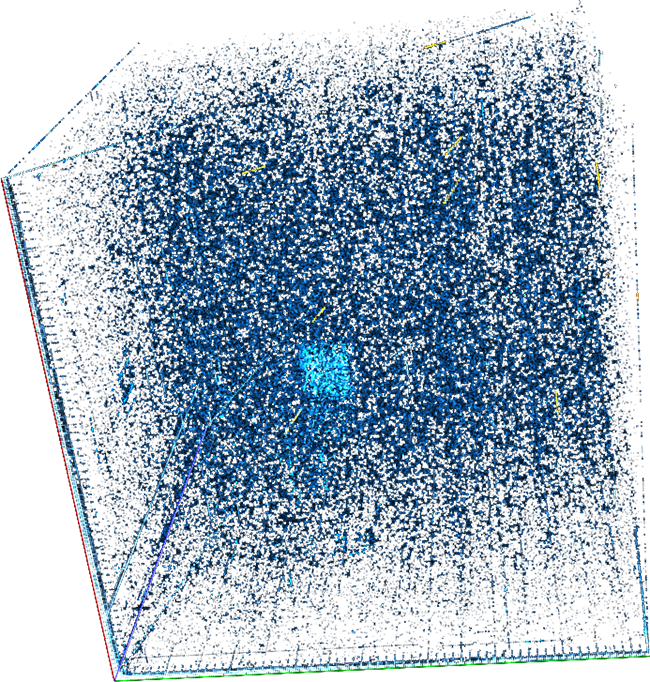

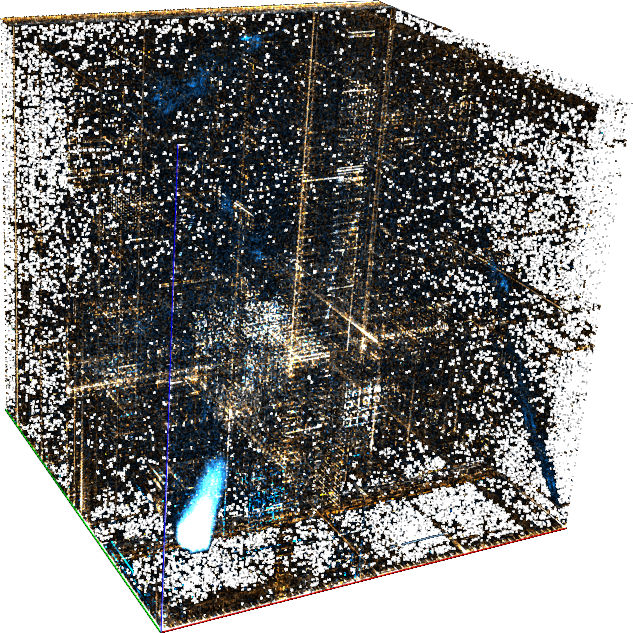

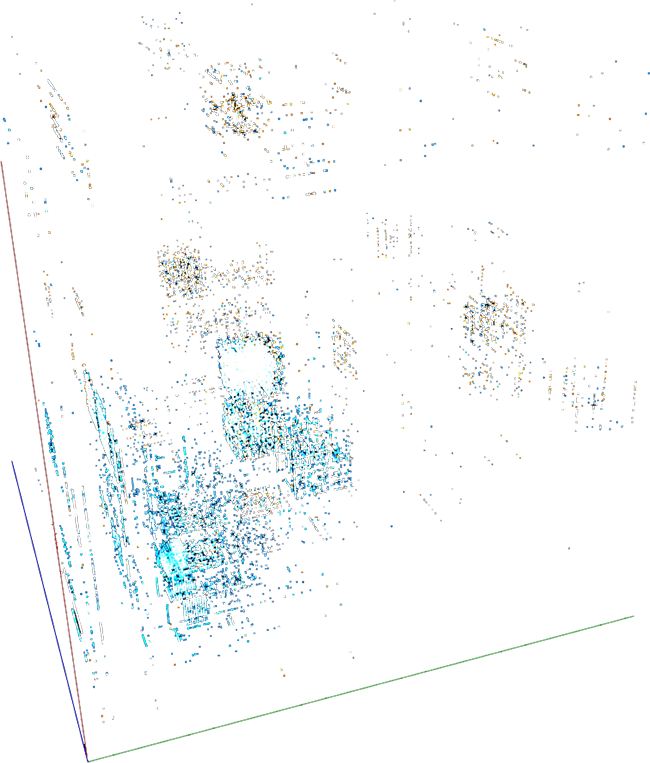

What are assets

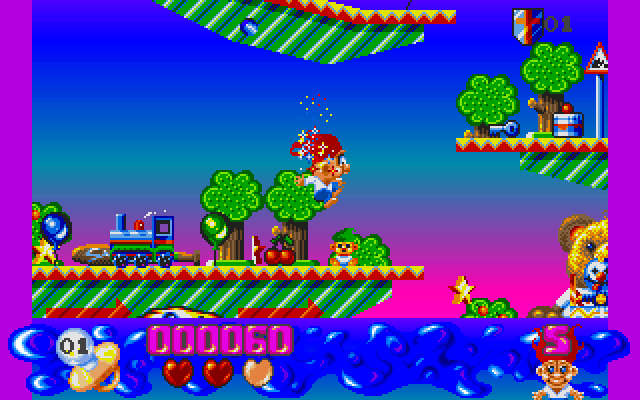

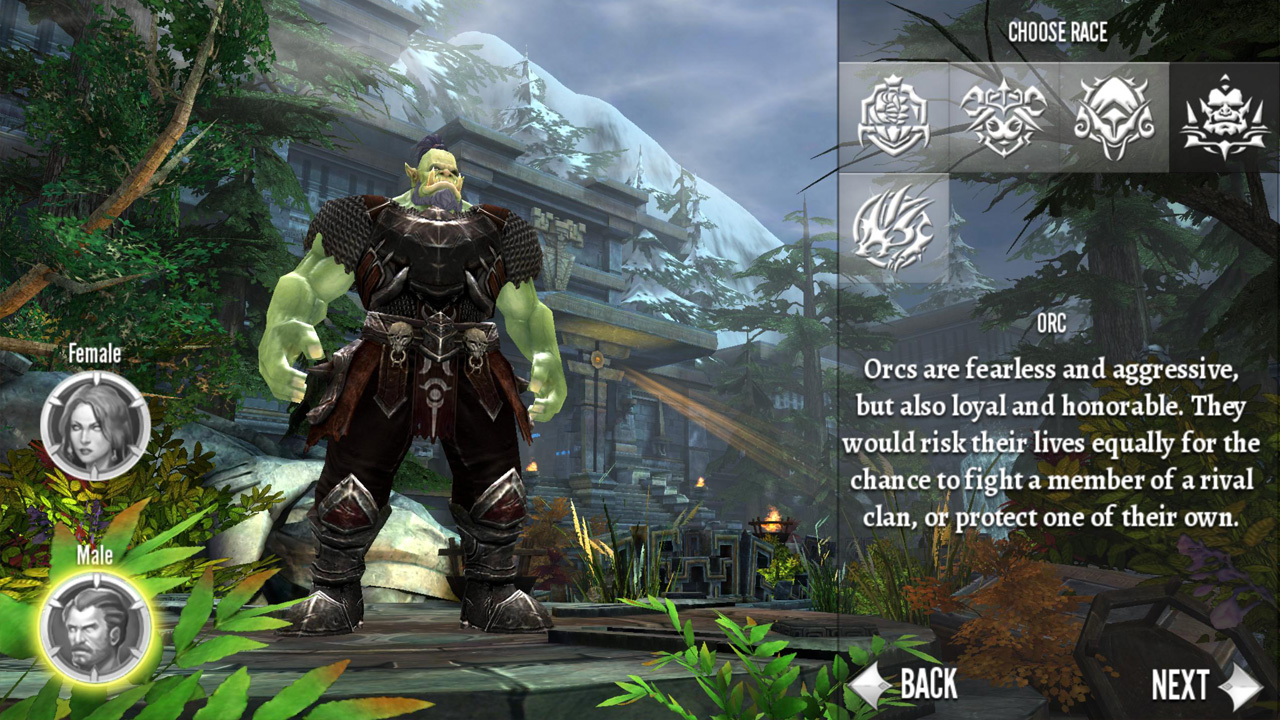

many games are very similar in their mechanics, yet the assets are different

What are assets

Assets

Medias

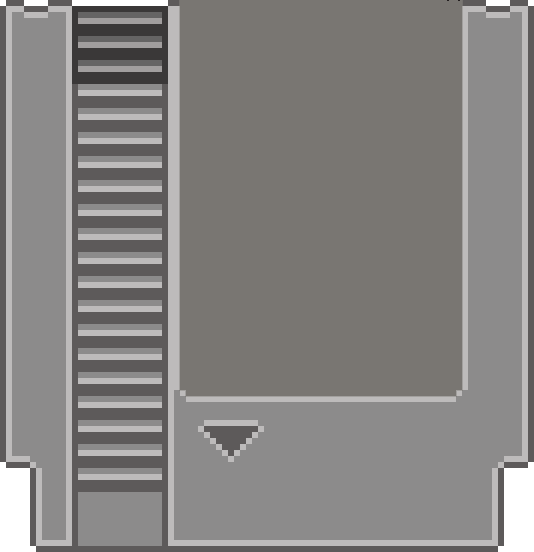

NES cartridge

8kB - 1MB

Super Mario

Game Boy cartridge

256 kB - 8 MB

Pokémon Yellow

Floppy Disk

1.44 MB

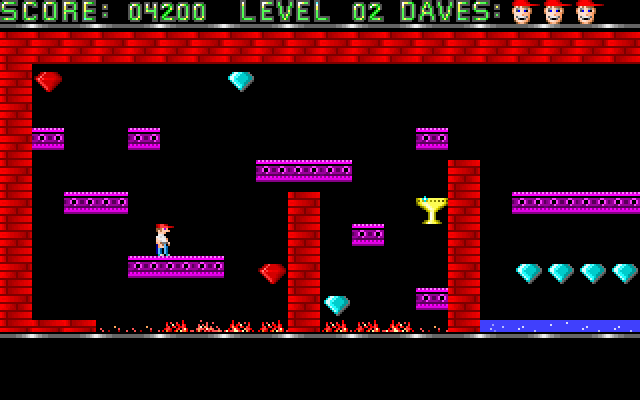

Duke Nukem 1

700 MB

Half-Life

DVD

4.7 GB - 8.5 GB

GTA San Andreas

Blu-ray

25 GB - 50 GB

Witcher 3

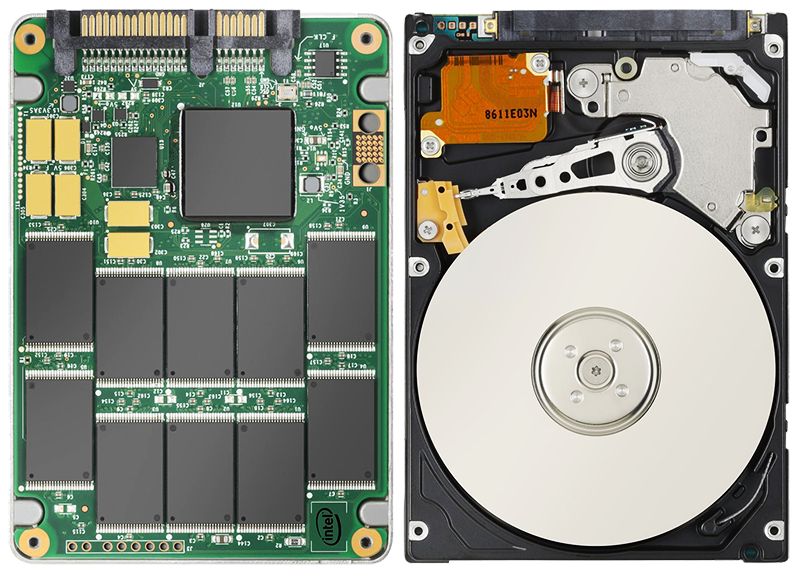

HDD

¯\_(ツ)_/¯

Call of Duty: Warzone

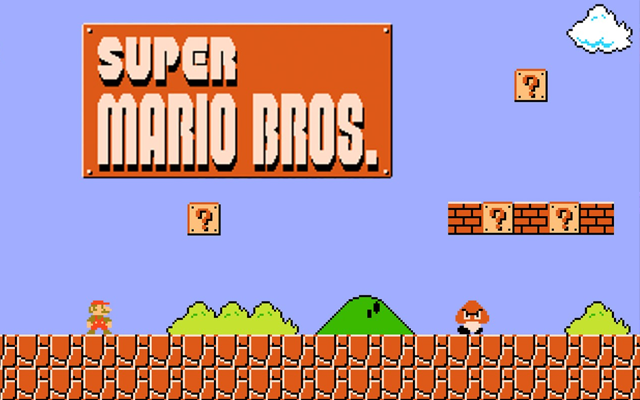

Super Mario took less space than the actual screenshot of it!

Size of game assets

And where is Call of Duty 4?

Asset Types

Sounds

AIFF, WAV, MP3, OGG

Images

PNG, JPG, TGA, SVG

Video

MP4, MKV, AVI, MOV, MPG, WEBM

3D Models

OBJ, FBX, BLEND, DAE, 3DS, X3D

Game Data

ZIP, XML, JSON, INI, CFG, SQLITE,...

Levels

CAS, DAT, RPF, TIGER, WAD

Fonts

OTF, TTF, WOFF

Scripts

JS, LUA, PY, CS

Assets management

Game Resources

Resource Manager

Provides access to all resources (~assets)

meshes, materials, shaders, animations, textures, clips, levels
many assets are not used in their original format
Resource Cache - used for faster access

Manages lifetime of each resource

most managers maintain some kind of registry

Ensures that only one copy of each resource exists in memory

resource GUID - usually path to the file, guaranteed to be unique

Loads required resources and unloads those no longer needed

loading is simpler than unloading

Handles streaming

in case of open worlds

Example: Godot Engine Resource Loader

   1  RES ResourceLoader::_load(const String &p_path, const String &p_original_path,
   2      const String &p_type_hint, bool p_no_cache, Error *r_error, bool p_use_sub_threads,
   3  	float *r_progress) {
   4  	bool found = false;
   5
   6  	// Try all loaders and pick the first match for the type hint
   7  	for (int i = 0; i < loader_count; i++) {
   8  		if (!loader[i]->recognize_path(p_path, p_type_hint)) {
   9  			continue;
  10  		}
  11  		found = true;
  12  		RES res = loader[i]->load(p_path, p_original_path != String() ?
  13  			p_original_path : p_path, r_error, p_use_sub_threads, r_progress, p_no_cache);
  14  		if (res.is_null()) {
  15  			continue;
  16  		}
  17
  18  		return res;
  19  	}
  20
  21  	ERR_FAIL_COND_V_MSG(found, RES(), vformat("Failed loading resource: %s.", p_path));
  22  }

Example: Godot Engine Resource Cache

   1  HashMap<String, Resource *> ResourceCache::resources;
   2
   3  Resource *ResourceCache::get(const String &p_path) {
   4  	lock->read_lock();
   5
   6  	Resource **res = resources.getptr(p_path);
   7
   8  	lock->read_unlock();
   9
  10  	if (!res) {
  11  		return nullptr;
  12  	}
  13
  14  	return *res;
  15  }
  16

Multimedia assets

Music Formats

AIFF

Audio Interchange File Format
uncompressed pulse-code modulation
may contain loops and samples

MP3

MPEG-1 Audio Layer III
lossy data-compression

OGG

more advanced and a bit smaller in size than MP3
open-source (in sharp contrast with MP3)

WAV

linear pulse-code modulation
used when time involved in compressing is a concern (short sounds)

Trackers

will be discussed in next lectures

MP3

lossy format
reduces accuracy by psychoacoustic analysis

Image Formats

JPEG

Joint Photographic Experts Group
used for storing digital photography
doesn't support alpha channel

PNG

Portable Network Graphics
good results for simple images (not real pictures)

TGA

Truevision TGA
favorite format for textures

SVG

Scalable Vector Graphics
format for vector images

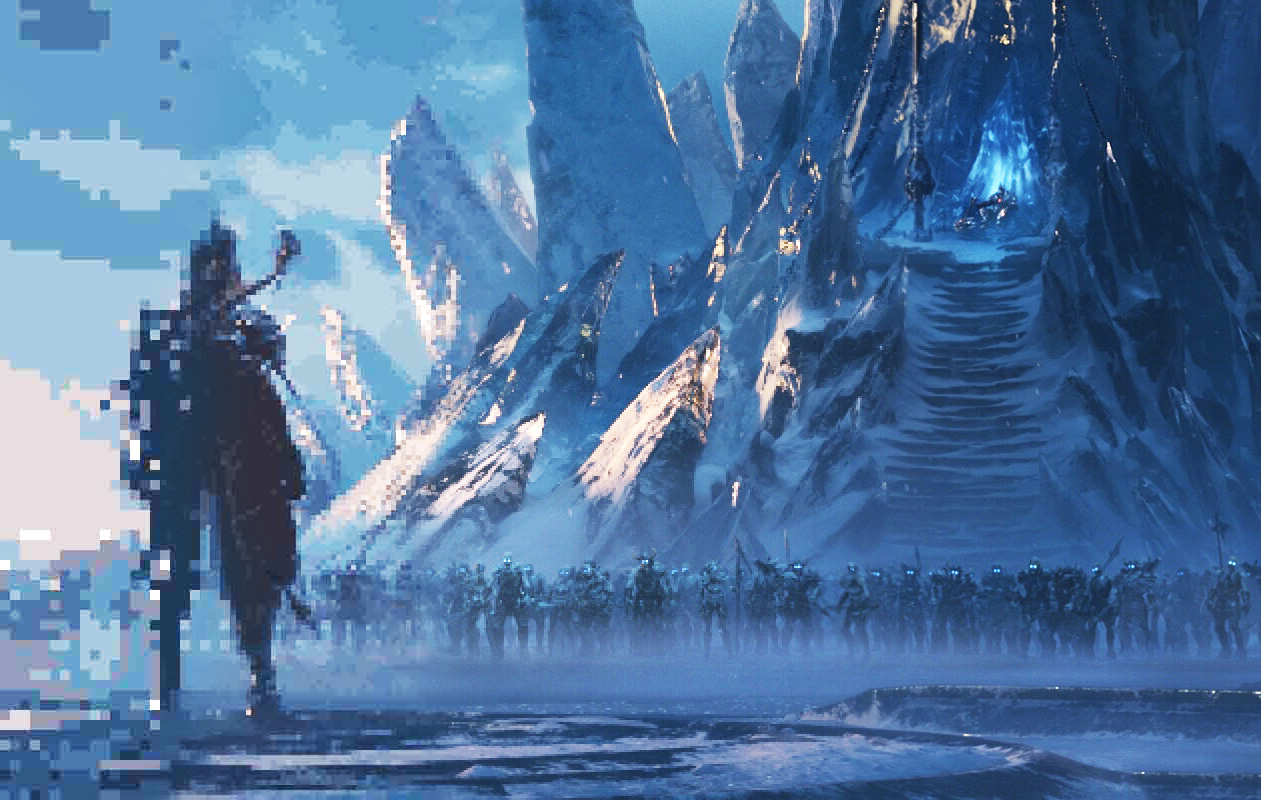

JPEG

lossy compression for digital images
note very good for pixel art or masking (compression noise)
Stages
- Color Transform - RGB to YCbCr
- Down-sampling - chroma reduction

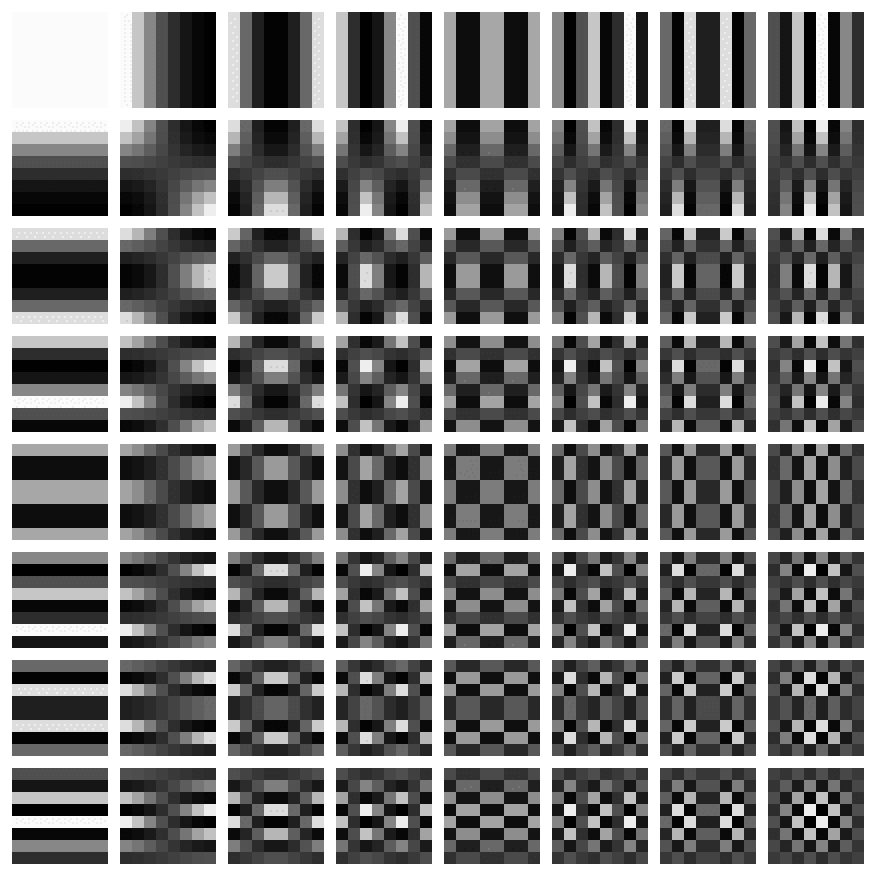

- DCT - discrete cosine transform, from color domain into frequency domain
- Quantization - removal of high-frequency components

PNG

lossless compression
appropriate for solid-color images
if there is no reason to do otherwise, use PNG for image assets
DEFLATE algorithm, supports alpha channel
Stages
- Indexing - creates a palette if only up to 256 colors are present
- Alpha compaction - optimizing - replaces the alpha channel with a color that is not present
- Pass extraction - splits an image into a few interlaced images

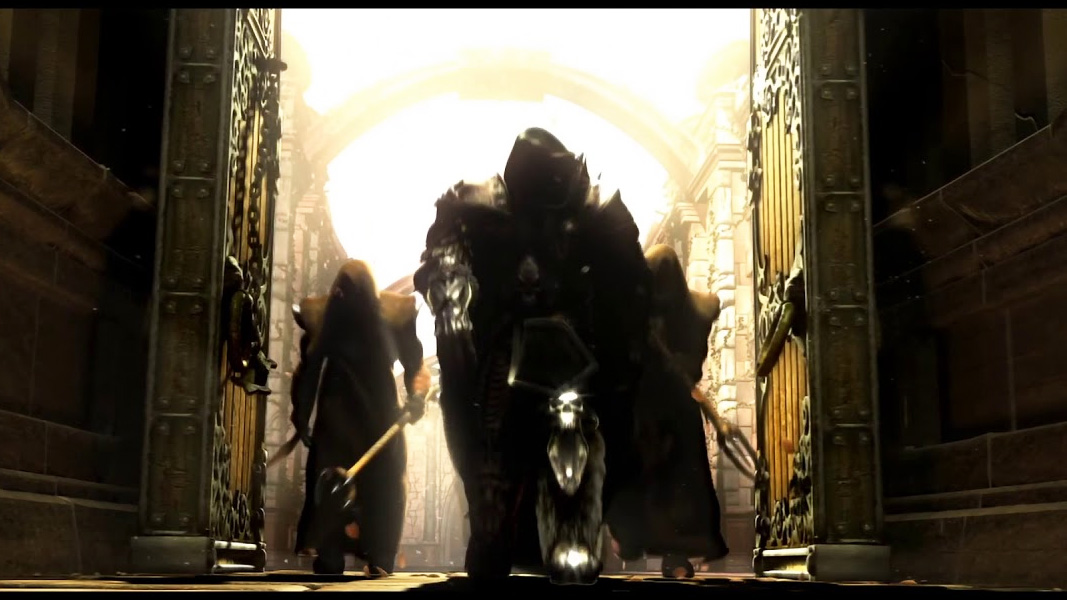

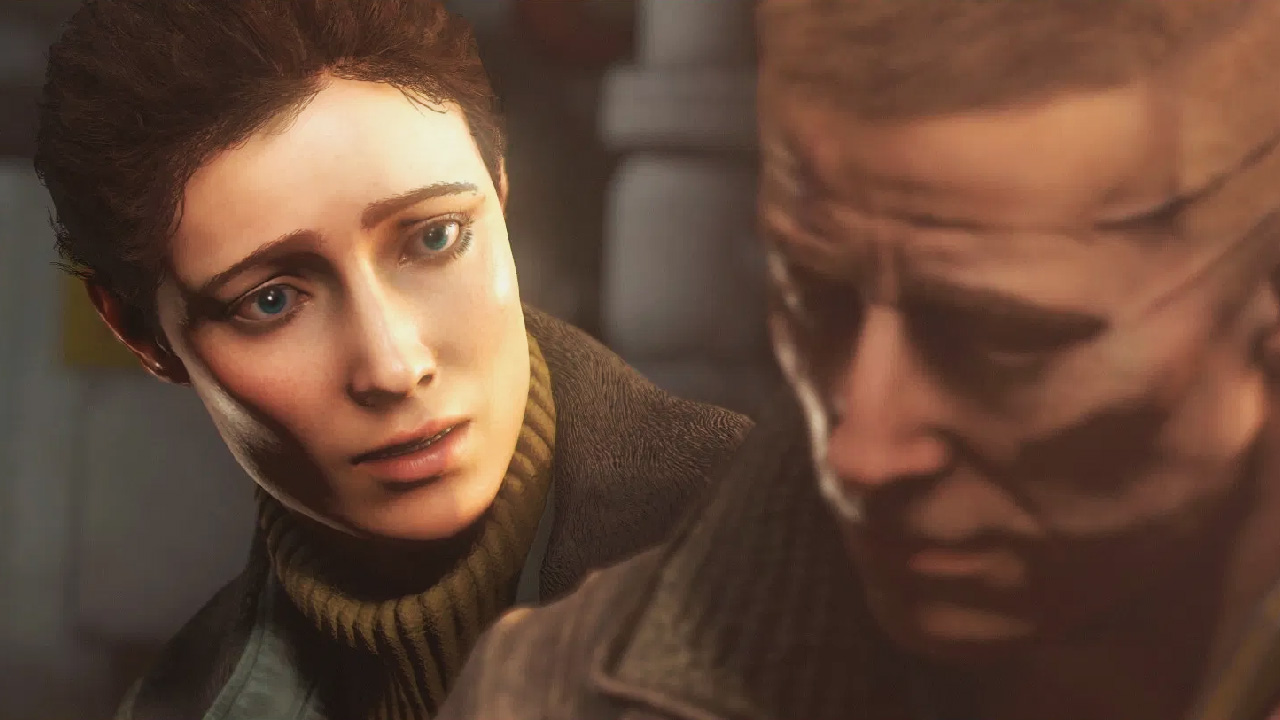

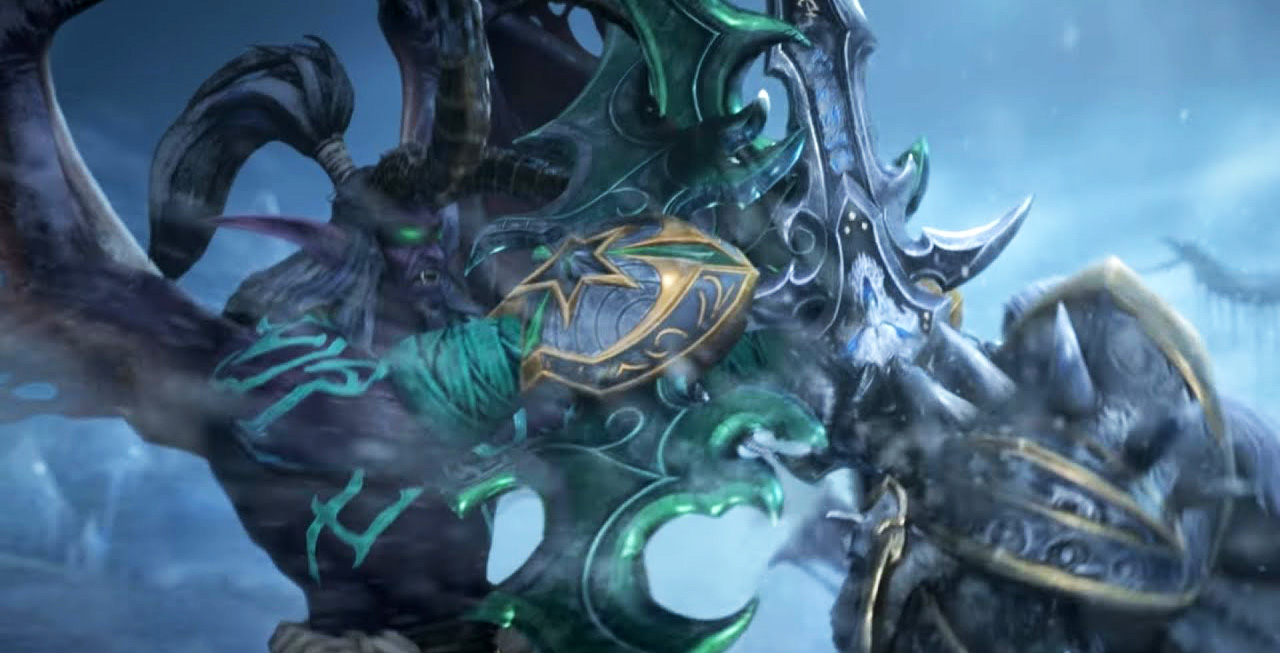

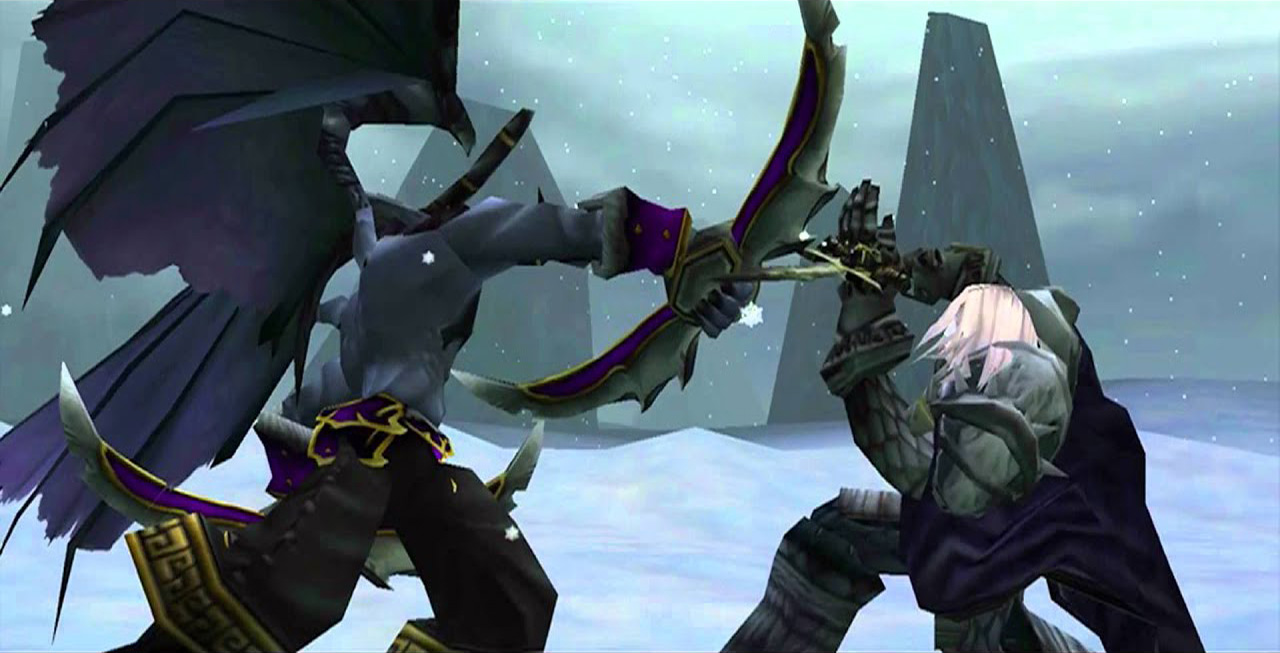

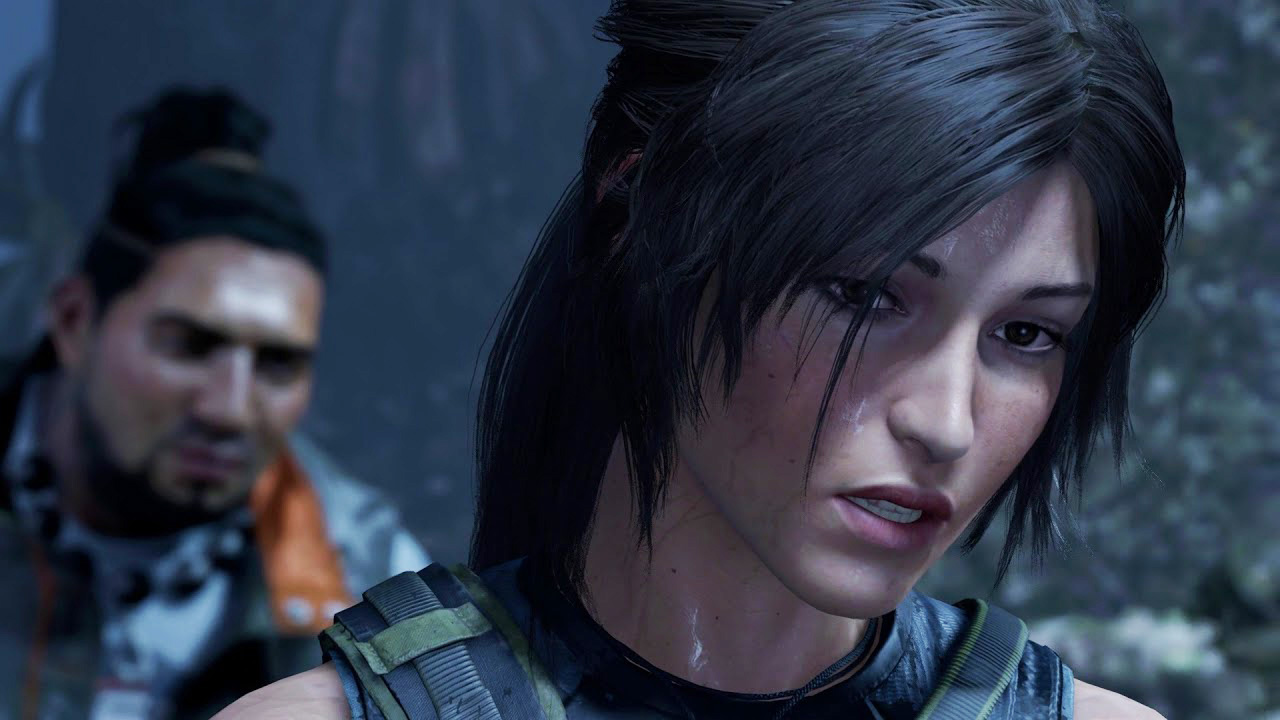

Videos and Cutscenes

Cutscene
- one of the most progressive properties of a game
- a) fully progressive - video, in-game cutscene
- b) partially progressive - i.e. custom skin of the avatar in the scene
- c) partially emergent - the player can walk around but can't control the scene
- d) fully emergent - generated cutscene
1980's - in-game cutscenes
1990's - pre-rendered video cutscenes
2000's - in-game cutscenes
2010's - pre-rendered video cutscenes ¯\_(ツ)_/¯

Videos and Cutscenes

Textures

pieces of bitmap that are applied to an object
textures are ultimately converted to formats that are specific to platform and graphic API

Types

diffuse texture
displacement texture
normal texture
volumetric texture
tileable texture
sprite atlas

Formats

Desktop: BC6H, BC7, DXT1, DXT5
iOS: ATSC, PVRTC
Android: ASTC

Sprites

Sprite

a single graphic image that is incorporated into a scene
allows to create large scenes as you can manipulate each sprite separately

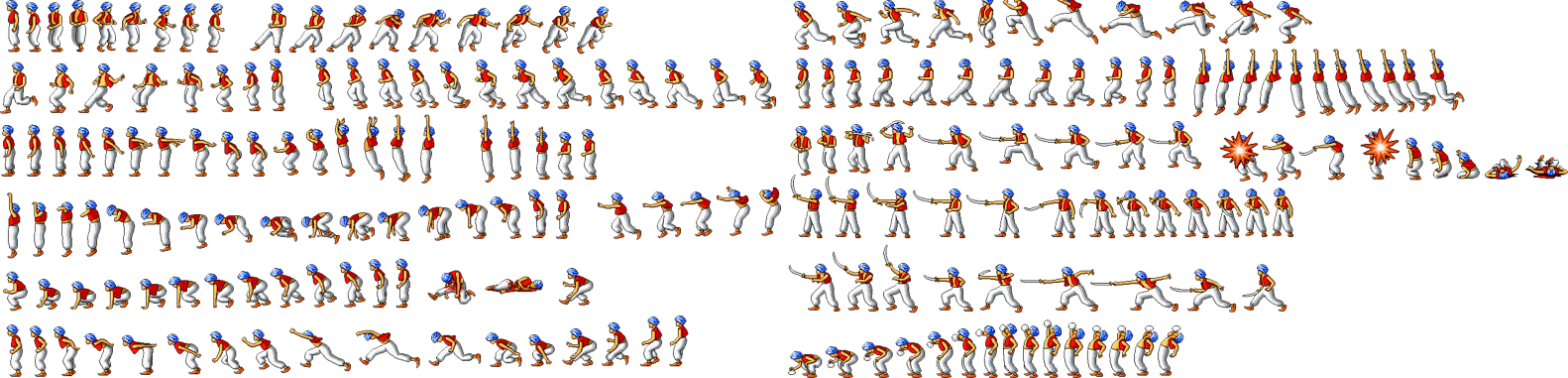

Spritesheet

a set of corresponding sprites

Sprite atlas

a single texture image containing a list of spritesheets

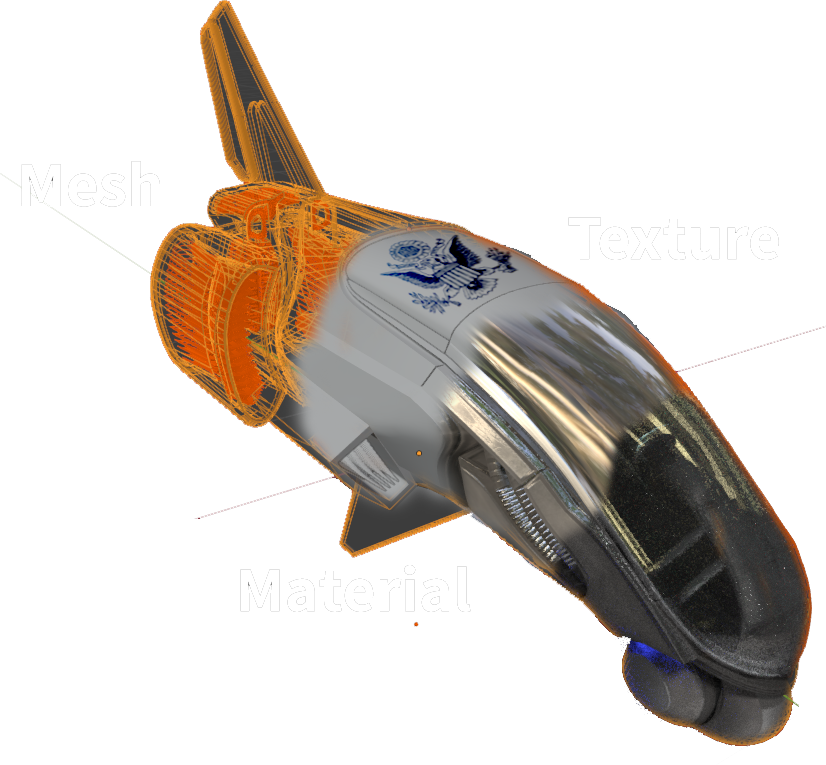

3D Objects

3D File Formats

encode 3D geometry, material, textures, animations,...
geometry encoding - approximate mesh, precise mesh and constructive solid geometry (CSG)
BLEND - internal blender file, supported by many engines
COLLADA - .DAE, sharing models across CAD software
X3D - popular format for WEB

	Appr. mesh	Prec. mesh	CSG	Color	Material	Texture	Camera	Lights
STL
OBJ
FBX
DAE
3DS
STEP
X3D
BLEND

Generic Assets

ZIP

many games use their own proprietary format derived from ZIP

ZIP

lossless archive format
compressions: shrink, DEFLATE, bzip2, none
directory-like structure

zlib

open-source library
implements DEFLATE compression

Game Data

Serialized data

XML, JSON, CSV, CFG,...
it's good to use XML for tree-like structures and JSON for flat entities
some languages (such as C++) don't provide a standardized serialization facility
JSON is a good fit for JavaScript as it is it's natural object notation

Database

Web environment: Web storage (small data), IndexedDB (large data)
Desktop/mobile: SQLite
Games that don't have multiplayer rarely need more than a simple database for config and save data

Save data

dump of all the parts of the game engine required to restore the full state
size varies, for most games it's usually a few MBs

Web Storage

Local Storage

for data of smaller size (config, game state)
up to 10MBs, no expiration time
keys and values are strings

   1  let myStorage = window.localStorage;
   2
   3  myStorage.setItem('player_state', player.stateId);
   4  myStorage.removeItem('player_state');
   5  myStorage.clear();

IndexedDB

JS-based object-oriented DB
low-level API for structured data

   1  await db.players.add({
   2      name: 'Warrior',
   3      avatar: await getBlob('sprite_warrior.png'),
   4      key_mapping: 'default'
   5  });

   1  {
   2  	"player": {
   3  		"difficulty": "hard",
   4  		"scene": "mountains_02",
   5  		"posX" : 12,
   6  		"posY" : 56,
   7  		"inventory" : ["flashlight, lighter, candle"],
   8  		"stamina": 45,
   9  		"agility": 12
  10  	}
  11  }

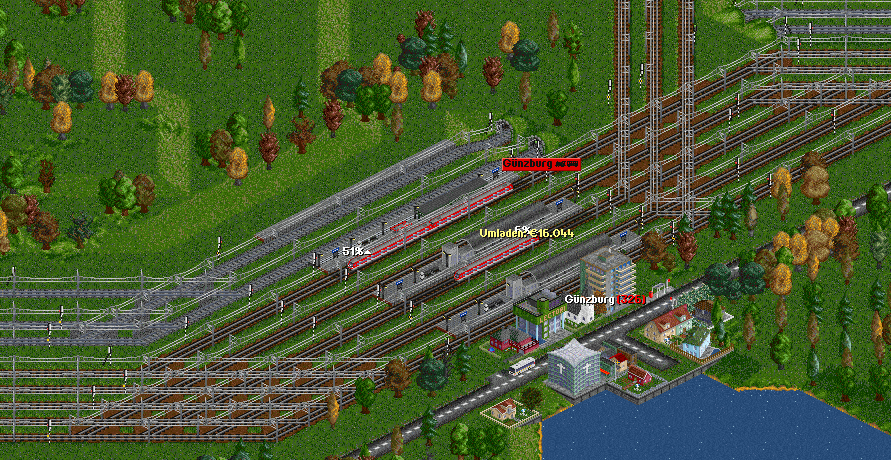

Example: OpenTTD Save format

3 data layers
very complex

Example: DOOM Save format

DSG files
the game loads the level and restores the state by going through its aspects
virtually nullifies the feasibility of manual hacking except the player data
Aspects:
- doors, switches, elevators, stairs, lights
- items picked/available
- projectiles, teleport, respawn
- animation, damage
- linedefs seen on automap
- items/kills gained counter

   1  // p_saveg.c::P_UnArchiveThinkers
   2  while (1) {
   3    tclass = *save_p++;
   4    switch (tclass) {
   5      case tc_mobj:
   6        PADSAVEP();
   7        mobj = Z_Malloc (sizeof(*mobj), PU_LEVEL, NULL);
   8        memcpy (mobj, save_p, sizeof(*mobj));
   9        save_p += sizeof(*mobj);
  10        mobj->state = &states[(int)mobj->state];
  11        mobj->target = NULL;
  12        if (mobj->player) {
  13          mobj->player = &players[(int)mobj->player-1];
  14          mobj->player->mo = mobj;
  15        }
  16        P_SetThingPosition (mobj);
  17        mobj->info = &mobjinfo[mobj->type];
  18        P_AddThinker (&mobj->thinker);

Levels, Maps, Dialogues

mostly proprietary formats of respective libraries/frameworks
TMX Maps
- tile map XML format for 2D games
- layers, properties, objects, animations, terrains, wangsets
Popular tools for Unity

Chat Mapper - tool for writing nonlinear dialogue
- branching trees
- barks and alerts
- QTE
- localization
- optional scripting
Articy Draft - visual database of characters, storylines and game variables
Quest Machine - extensible quest system

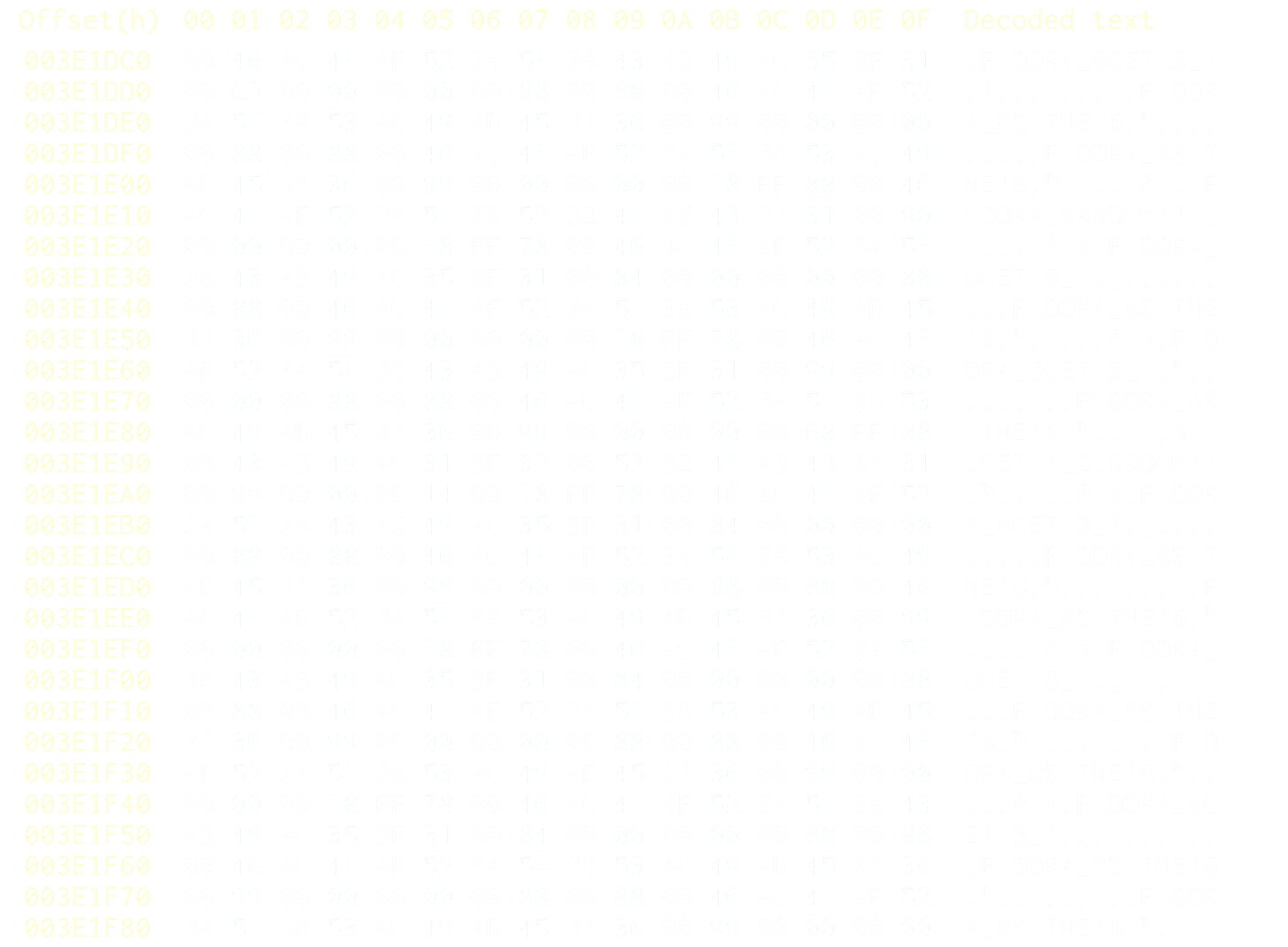

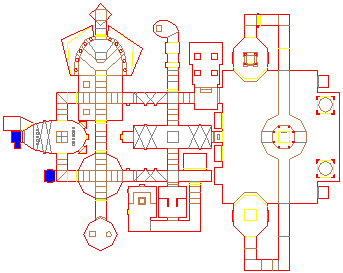

Example: DOOM WAD file

"Where's All the Data"
Binary format of package files for Doom
- Levels (walls, floors, monsters)
- Sound effects, music
- Color palettes, images
Designed by John D. Carmack

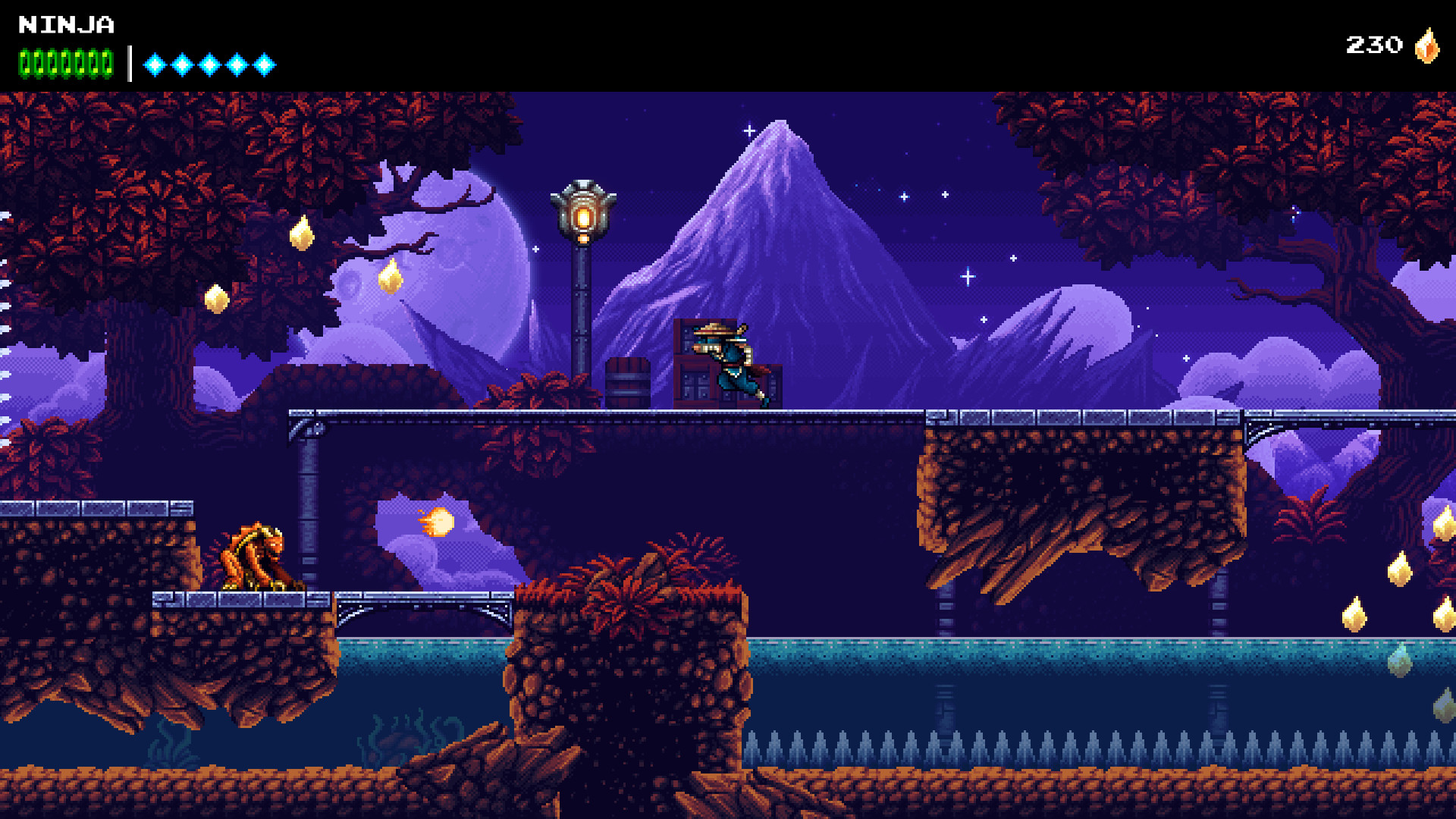

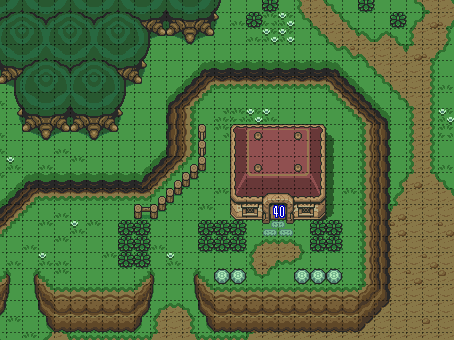

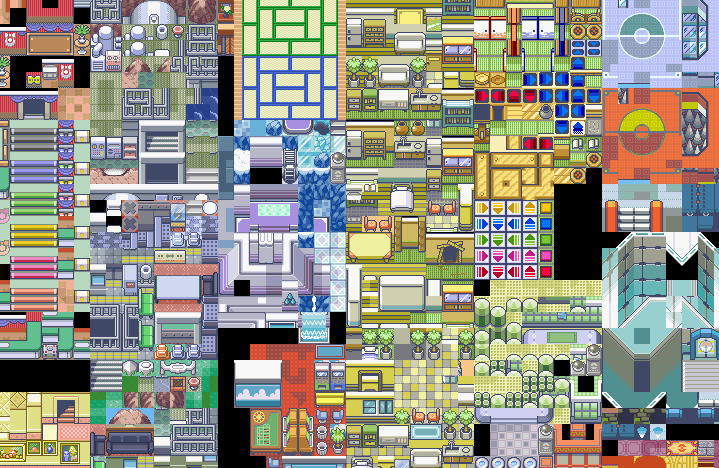

Tilemaps

several layers - 1st-layer tiles, sprites, 2nd-layer tiles, background (for parallax scrolling)
Tile - the smallest element on a map
Wang - a set of tiles that make a unified whole (e.g. a building)

Lecture Summary

I know what game assets are
I know the purpose of a Resource manager
I know the difference between the use-cases of WAV and MP3/OGG formats
I know the difference between PNG and JPEG formats
I know what a cutscene is
I know what a sprite is
I know the types of textures
I know what a tilemap is

Goodbye Quote

Hope is what makes us strong. It is why we are here. It is what we fight with when all else is lost.God of War

1	RES ResourceLoader::_load(const String &p_path, const String &p_original_path,
2	const String &p_type_hint, bool p_no_cache, Error *r_error, bool p_use_sub_threads,
3	float *r_progress) {
4	bool found = false;
5
6	// Try all loaders and pick the first match for the type hint
7	for (int i = 0; i < loader_count; i++) {
8	if (!loader[i]->recognize_path(p_path, p_type_hint)) {
9	continue;
10	}
11	found = true;
12	RES res = loader[i]->load(p_path, p_original_path != String() ?
13	p_original_path : p_path, r_error, p_use_sub_threads, r_progress, p_no_cache);
14	if (res.is_null()) {
15	continue;
16	}
17
18	return res;
19	}
20
21	ERR_FAIL_COND_V_MSG(found, RES(), vformat("Failed loading resource: %s.", p_path));
22	}

1	HashMap<String, Resource *> ResourceCache::resources;
2
3	Resource *ResourceCache::get(const String &p_path) {
4	lock->read_lock();
5
6	Resource **res = resources.getptr(p_path);
7
8	lock->read_unlock();
9
10	if (!res) {
11	return nullptr;
12	}
13
14	return *res;
15	}
16

1	let myStorage = window.localStorage;
2
3	myStorage.setItem('player_state', player.stateId);
4	myStorage.removeItem('player_state');
5	myStorage.clear();

1	await db.players.add({
2	name: 'Warrior',
3	avatar: await getBlob('sprite_warrior.png'),
4	key_mapping: 'default'
5	});

1	{
2	"player": {
3	"difficulty": "hard",
4	"scene": "mountains_02",
5	"posX" : 12,
6	"posY" : 56,
7	"inventory" : ["flashlight, lighter, candle"],
8	"stamina": 45,
9	"agility": 12
10	}
11	}

1	// p_saveg.c::P_UnArchiveThinkers
2	while (1) {
3	tclass = *save_p++;
4	switch (tclass) {
5	case tc_mobj:
6	PADSAVEP();
7	mobj = Z_Malloc (sizeof(*mobj), PU_LEVEL, NULL);
8	memcpy (mobj, save_p, sizeof(*mobj));
9	save_p += sizeof(*mobj);
10	mobj->state = &states[(int)mobj->state];
11	mobj->target = NULL;
12	if (mobj->player) {
13	mobj->player = &players[(int)mobj->player-1];
14	mobj->player->mo = mobj;
15	}
16	P_SetThingPosition (mobj);
17	mobj->info = &mobjinfo[mobj->type];
18	P_AddThinker (&mobj->thinker);
