Lecture 5

Patterns

APH.DODO.ME

Architecture of Computer Games

Adam Vesecký

Literature

Nystrom, Robert. 2014. Game Programming Patterns

Nystrom, Robert. Game Programming Patterns

If game programmers ever cracked open Design Patterns at all, never got past Singleton. Gang of Four’s is inapplicable to games in its original version.Robert Nystrom

Games and S.O.L.I.D principles

principles and patterns were built for software engineering, not game development

Single Responsibility Principle

actual meaning: every class should have only one job
in game dev: every component should have a narrow scope of responsibilities

Open-Closed Principle

actual meaning: objects should be open for extension, but closed for modification
in game dev: adding new mechanics means adding new components, not modifying the old ones

Liskov Substitution Principle

actual meaning: subclasses are substitutable for their parent classes
in game dev: specialized components are substitutable for their base components

Dependency-Inversion Principle

actual meaning: entities must depend on abstractions not on concretions
in game dev: components shouldn't care about what object is but rather what it has

Interface-Segregation Principle

actual meaning: class shouldn't depend on methods it doesn't need
in game dev: components shouldn't subscribe messages they don't need to react to

Design patterns

Design patterns in applications

Design patterns in games

Action Patterns

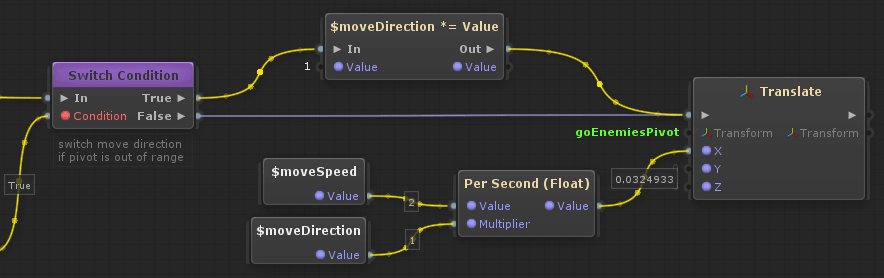

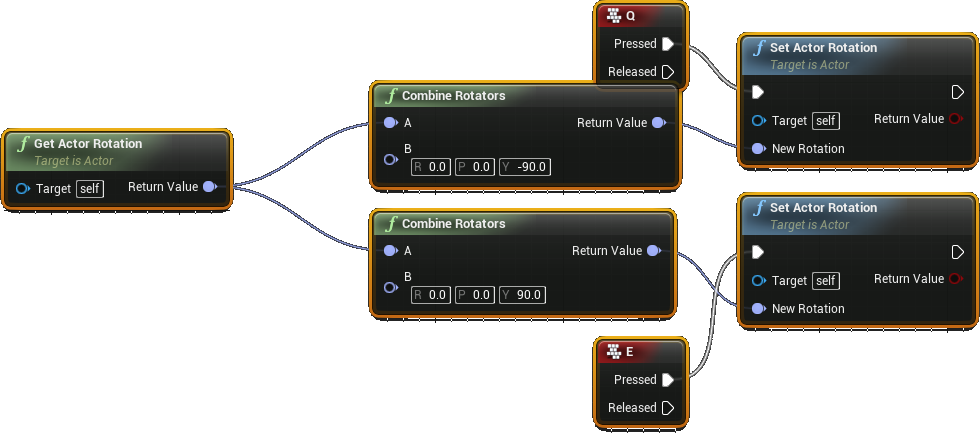

Data-Passing Components

~visual programming
thinks solely in terms of sending streams of data from one object to another
every component has a set of ports to which a data stream can be connected
requires a visual editor
good for dynamic data processing (shaders, animations, AI decisions)

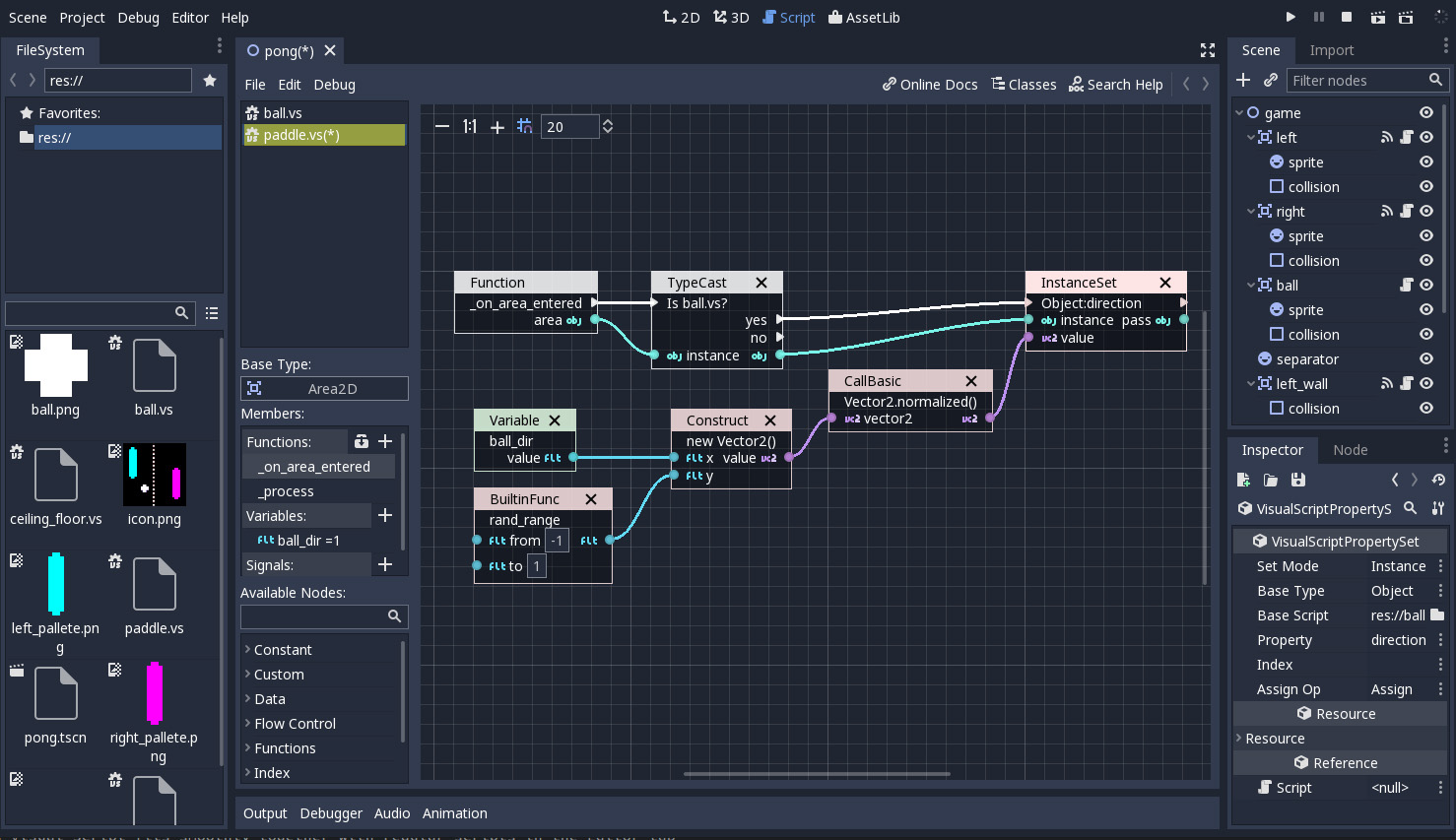

Example: Godot Editor

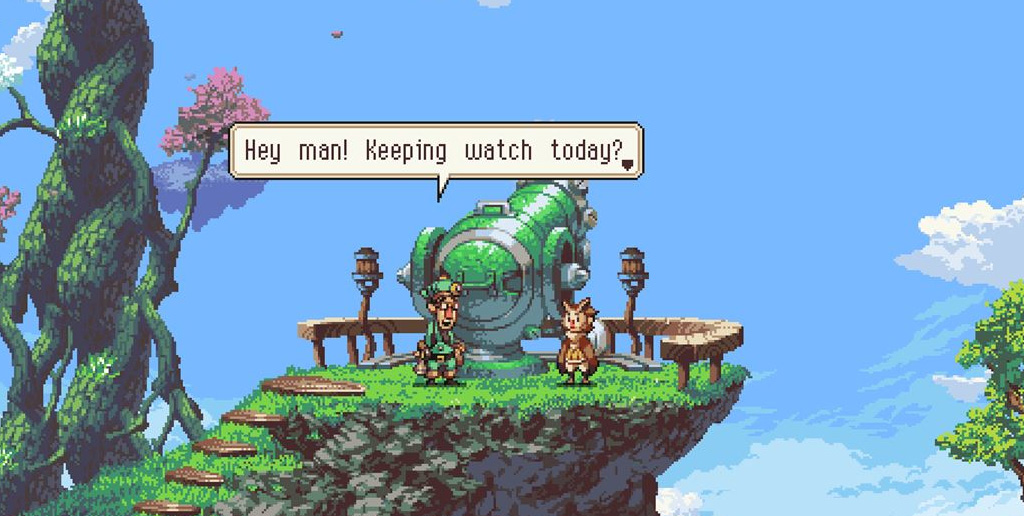

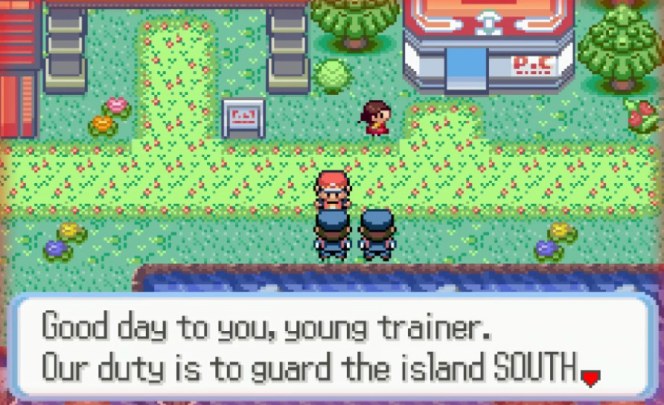

Event System

many games are event-based
event system of a game is usually more complex than built-in event emitter

What we need

built-in event emitter
a good way of how to define events for levels (declarative and imperative)
structures for evaluation of conditional events (e.g. history of recent events)
a good visualisation, if the events are branching

Avoid placing conditions in declarative languages

Chain

Process - something that requires more than one frame to finish
- basically anything that involves animations, mini cut-scenes, delayed actions, sounds
Chain - a set of commands, events and processes that need to be evaluated in a given order
implementation
- callbacks - basically in every language, very bad robustness
- listener chaining - any language with closures (Java, JavaScript, C#,..)
- iterator blocks - C#
- promises and generators - JavaScript
- coroutines - Kotlin, Ruby, Lua,...

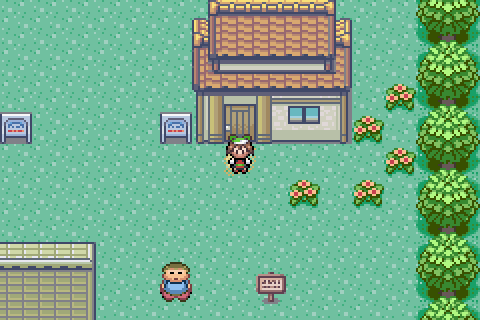

Chain Example

   1
   2  public async Task EnterDoorAction(Door door) {
   3  	this.Context.Player.BlockInput();
   4  	await new DoorAnimation(door).Open();
   5  	await new WalkAnimation(this.Context.Player).Walk(this.Context.Player.direction);
   6  	this.Context.Player.Hide(); // hide the sprite once it approaches the house
   7  	await new DoorAnimation(door).Close();
   8  	await Delay(500); // wait for 500 ms
   9  }
  10
  11  .......
  12
  13  public async Task OnPlayerDoorApproached(Door door) {
  14  	await new EnterDoorAction(door);
  15  	await new SceneLoader(door.TargetScene);
  16  }

Delay

an action/event that should happen after a given amount of time
can be implemented by the same facilities as the chain
always prefer an approach the engine recommends over features built into the scripting language
- e.g. setTimeout() in JavaScript is invoked from within the event loop, not during an update loop

example: Unity Delayed Invocation

   1  IEnumerator Spawn () {
   2          // Create a random wait time before the prop is instantiated.
   3          float waitTime = Random.Range(minTimeBetweenSpawns, maxTimeBetweenSpawns);
   4          // Wait for the designated period.
   5          yield return new WaitForSeconds(waitTime);
   6
   7          // Instantiate the prop at the desired position.
   8          Rigidbody2D propInstance = Instantiate(backgroundProp, spawnPos, Quaternion.identity) as Rigidbody2D;
   9          // Restart the coroutine to spawn another prop.
  10          StartCoroutine(Spawn());
  11  }

Separation of concerns

common misuse is to handle complex events in one place
solution: send events and delegate the processing to handlers

in one place

   1  if(asteroid.position.distance(rocket.position) <= MIN_PROXIMITY) { // detect proximity
   2    rocket.runAnimation(ANIM_EXPLOSION); // react instantly and handle everything
   3    asteroid.runAnimation(ANIM_EXPLOSION);
   4    playSound(SOUND_EXPLOSION);
   5    asteroid.destroy();
   6    rocket.destroy();
   7  }

separated

   1  // collision-system.ts
   2  let collisions = this.collisionSystem.checkProximity(allGameObjects);
   3  collisions.forEach(colliding => this.sendEvent(COLLISION_TRIGGERED, colliding));
   4  // rocket-handler.ts
   5  onCollisionTriggered(colliding) {
   6    this.destroy();
   7    this.sendEvent(ROCKET_DESTROYED);
   8  }
   9  // sound-component.ts
  10  onGameObjectDestroyed() {
  11    this.playSound(SOUND_EXPLOSION);
  12  }

Example: Quake death script

   1  void() PlayerDie = {
   2  	DropBackpack();
   3
   4  	self.weaponmodel="";
   5  	self.view_ofs = '0 0 -8';
   6  	self.deadflag = DEAD_DYING;
   7  	self.solid = SOLID_NOT;
   8  	self.flags = self.flags - (self.flags & FL_ONGROUND);
   9  	self.movetype = MOVETYPE_TOSS;
  10
  11  	if (self.velocity_z < 10)
  12  		self.velocity_z = self.velocity_z + random()*300;
  13
  14  	DeathSound();
  15
  16  	if (self.weapon == IT_AXE) {
  17  		player_die_ax1 ();
  18  		return;
  19  	}
  20
  21  	i = 1 + floor(random()*6);
  22  	if (i == 1)
  23  		player_diea1();
  24  	else if (i == 2)
  25  		player_dieb1();
  26  	else player_diec1();
  27  };

Responsibility ownership

determines which component should be responsible for given scope/action/decision
there is no bulletproof recipe, yet it should be unified
if the scope affects only one entity, it should be a component attached to that entity

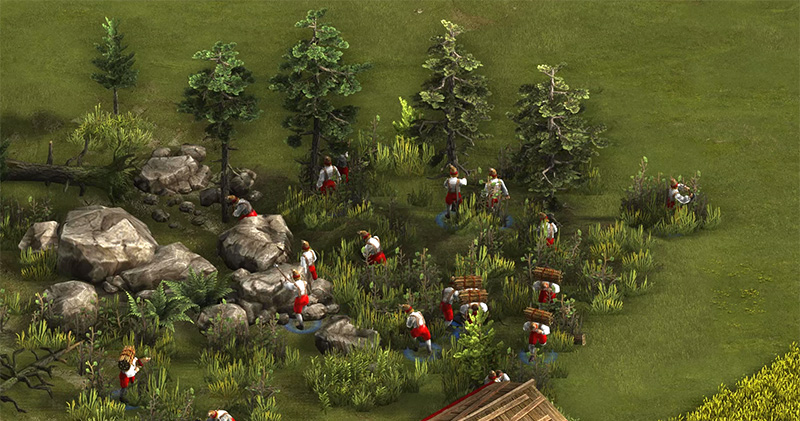

- example: a worker that goes to the forest for some wood
if the scope affects more entities, it's often a component/system attached either to an abstract entity up the scene graph (e.g. the root object)

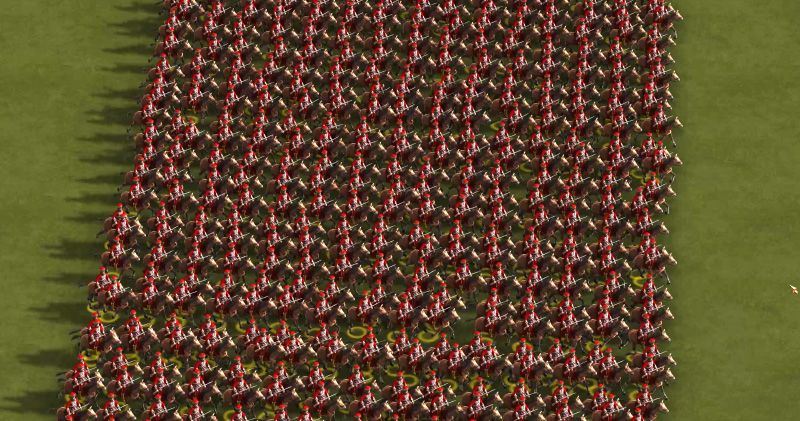

- example: battle formation controller, duel controller (who wins, who loses)

Optimizing Patterns

Memory issues

Memory caching issues

CPU first tries to find data in the L1 cache
then it tries the larger but higher-latency L2 cache
then it tries L3 cache and DDR memory

Avoiding cache miss

arrange your data in RAM in such a way that min cache misses occur
organise data in contiguous blocks that are as small as possible
avoid calling functions from within a performance-critical section of code

Avoiding branch misprediction

branch = using an IF statement
pipelined CPU tries to guess which branch is going to be taken
if the guess is wrong, the pipeline must be flushed

   1  // iterating inside out -> SLOW
   2  for (i = 0 to size)
   3    for (j = 0 to size)
   4      do something with array[j][i]

   1  // iterating outside in -> FAST
   2  for (i = 0 to size)
   3    for (j = 0 to size)
   4      do something with array[i][j]

   1  // assume only 50% active/visible objects
   2  gameLoop(delta, absolute) {
   3    for(let entity in this.entities) {
   4      // 50% mispredictions
   5      if(entity.ACTIVE) {
   6        entity.update(delta, absolute);
   7      }
   8      if(entity.VISIBLE) {
   9        entity.draw();
  10      }
  11    }
  12  }

Data storing

Randomly

Sequentially

String Hash

in C++, strings are expensive to work with at runtime, strcmp has O(n) complexity
many scripting engines use string interning
game engines widely use string hash which maps a string onto a semi-unique integer
algorithms: djb2, sdbm, lose lose,...
example: sdbm

   1  // hashing function
   2  inline unsigned SDBMHash(unsigned hash, unsigned char c) {
   3  	return c + (hash << 6) + (hash << 16) - hash;
   4  }
   5
   6  unsigned calc(const char* str, unsigned hash = 0) {
   7      while (*str) {
   8          // Perform the current hashing as case-insensitive
   9          char c = *str;
  10          hash = SDBMHash(hash, (unsigned char)tolower(c));
  11          ++str;
  12      }
  13      return hash;
  14  }

Flyweight

an object keeps shared data to support large number of fine-grained objects
e.g. instanced rendering, geometry hashing, particle systems
here we move a position and a tile index (Sprite) into an array

Structural Patterns

Variant

a class that is designed to store a variety of other types
engines use variants to track all scripting API variables
VariantMap - a generic structure that is often used for message processing
features
- can store any datatype
- can be hashed and compared to other variants
- can be used to safely convert between datatypes
- can be serialized as binary or text and stored to disk

   1  #define GODOT_VARIANT_SIZE (16 + sizeof(int64_t))
   2
   3  typedef struct {
   4  	uint8_t _dont_touch_that[GODOT_VARIANT_SIZE];
   5  } godot_variant;
   6
   7  typedef enum godot_variant_type {
   8  	// atomic types
   9  	GODOT_VARIANT_TYPE_NIL,
  10  	GODOT_VARIANT_TYPE_BOOL,
  11  	GODOT_VARIANT_TYPE_INT,
  12  	...

Two-stage initialization

avoids passing everything through the constructor
constructor creates an object, init method initializes it
objects can be initialized several times
objects can be allocated in-advance in a pool

   1  class Brainbot extends Unit {
   2
   3    private damage: number;
   4    private currentWeapon: WeaponType;
   5
   6    constructor() {
   7      super(UnitType.BRAIN_BOT);
   8    }
   9
  10    init(damage: number, currentWeapons: WeaponType) {
  11      this.damage = damage;
  12      this.currentWeapon = currentWeapons;
  13    }
  14  }

Locator and Blackboard

Locator

provides global or scoped services
in component-based engines, the whole scene may work as a locator
we can initialize the locator to provide a given set of services
we can implement null service to disable certain behavior (e.g. sound)

Blackboard (Context)

shared data structure for a scope (or the whole game)
provides global or scoped data (e.g. player score, money, number of lives)
often used in behavioral trees

   1  public void OnTriggerEvent(Event evt, Context ctx) {
   2
   3  	if(evt.Key == "LIFE_LOST") {
   4  		ctx.Lives--; // access the context
   5  		if(ctx.Lives <= 0) {
   6  			this.FireEvent("GAME_OVER");
   7  		}
   8  	}
   9  }

Please, avoid using SINGLETONS

Selector

a function that returns a value
centralizes the knowledge of how to find an entity/attribute/component
can be used by components to access dynamic data
can form a hierarchy from other selectors

   1  const getPlayer(scene: Scene) => scene.findObjectByName('player');
   2
   3  const getAllUnits(scene: Scene) => scene.findObjectsByTag('unit_basic');
   4
   5  const getAllUnitsWithinRadius(scene: Scene, pos: Vector, radius: number) => {
   6  	return getAllUnits(scene).filter(unit => unit.pos.distance(pos) <= radius);
   7  }
   8
   9  const getAllExits(scene: Scene) => {
  10  	const doors = scene.findObjectsByTag('door');
  11  	return doors.filter(door => !door.locked);
  12  }

State Patterns

Dirty Flag

marks changed objects that need to be recalculated
can be applied to various attributes (animation, physics, transformation)
you have to make sure to set the flag every time the state changes

Cleaning

When the result is needed
- avoids doing recalculation if the result is never used
- game can freeze for expensive calculations
At well-defined checkpoints
- less impact on user experience
- you never know, when it happens
On the background
- you can do more redundant work
- danger of race-condition

Example: Godot Cache

   1  void AnimationCache::_clear_cache() {
   2  	while (connected_nodes.size()) {
   3  		connected_nodes.front()->get()
   4  			->disconnect("tree_exiting", callable_mp(this, &AnimationCache::_node_exit_tree));
   5  		connected_nodes.erase(connected_nodes.front());
   6  	}
   7  	path_cache.clear();
   8  	cache_valid = false;
   9    	cache_dirty = true;
  10  }
  11
  12  void AnimationCache::_update_cache() {
  13  	cache_valid = false;
  14
  15  	for (int i = 0; i < animation->get_track_count(); i++) {
  16  		// ... 100 lines of code
  17  	}
  18
  19    	cache_dirty = false;
  20  	cache_valid = true;
  21  }
  22

Mutability

immutable state is a luxury only simple games can afford
we should assume that everything can be mutable
selectors can help us access properties that are deep in the hierarchy
dirty flag can help us find out if an entity has changed during the update
chain can help us centralize complex modifications and handle side effects
messages can help us discover if any important structure has changed

ID generator

a simple way to generate consecutive integers
Java (Thread safe)

   1  public class Generator {
   2    private final static AtomicInteger counter = new AtomicInteger();
   3
   4    public static int getId() {
   5       return counter.incrementAndGet();
   6    }
   7  }

TypeScript, using a generator

   1  function* generateId() {
   2    let id = 0;
   3    while(true) {
   4      yield id;
   5      id++;
   6    }
   7  }
   8
   9  let newId = generateId().next();

TypeScript, using a static variable

   1  class Generator {
   2    static idCounter = 0;
   3
   4    getId(): number {
   5      return Generator.idCounter++;
   6    }
   7  }

Flag

bit array that stores binary properties of game objects
may be used for queries (e.g. find all MOVABLE objects)
similar to a state machine but the use-case is different
if we maintain all flags within one single structure, we can search very fast

Example: Flag Table

Numeric state

the most basic state of an entity
allows us to set conditions upon which a transition to other states is possible

   1  // stateless, the creature will jump each frame
   2  updateCreature() {
   3    if(eventSystem.isPressed(KeyCode.UP)) {
   4      this.creature.jump();
   5    }
   6  }
   7
   8  // introduction of a state
   9  updateCreature() {
  10    if(eventSystem.isPressed(KeyCode.UP) && this.creature.state !== STATE_JUMPING) {
  11      this.creature.changeState(STATE_JUMPING);
  12      this.creature.jump();
  13    }
  14  }

Creational Patterns

Builder

a template that keeps attributes from which it can build new objects
each method returns back the builder itself, so it can be chained

   1  class Builder {
   2    private _position: Vector;
   3    private _scale: Vector;
   4
   5    position(pos: Vector) {
   6      this.position = pos;
   7      return this;
   8    }
   9
  10    scale(scale: Vector) {
  11      this.scale = scale;
  12      return this;
  13    }
  14
  15    build() {
  16      return new GameObject(this._position, this._scale);
  17    }
  18  }
  19
  20  new Builder().position(new Vector(12, 54)).scale(new Vector(2, 1)).build();

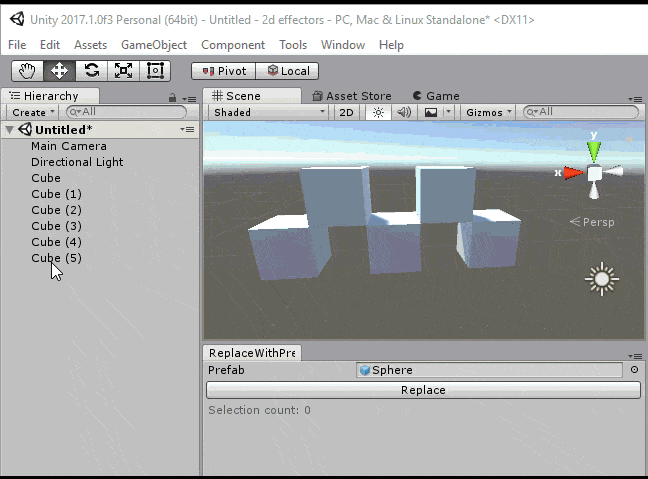

Prototype

Builder builds new objects from scratch, Prototype creates new objects by copying their attributes
in some implementations, the prototype is linked to its objects - if we change the prototype, it will affect all derived entities
e.g. templates in Godot, linked prefabs in Unity and Unreal engine

Transmuter

modifies a state and behavior of an object
useful when the change is not trivial
we can move the modification process from components to separate functions

   1  const superBallTransmuter = (entity: GameObject) => {
   2      entity.removeComponent<BallBehavior>();
   3      entity.addComponent(new SuperBallBehavior());
   4      entity.state.speed = SUPER_BALL_SPEED;
   5      entity.state.size = SUPER_BALL_SIZE;
   6      return entity;
   7  }

Factory

Builder assembles an object, factory manages the assembling
Factory creates an object according to the parameters but with respect to the context

   1  class UnitFactory {
   2
   3    private pikemanBuilder: Builder; // preconfigured to build pikemans
   4    private musketeerBuilder: Builder; // preconfigured to build musketeers
   5    private archerBuilder: Builder; // preconfigured to build archers
   6
   7    public spawnPikeman(position: Vector, faction: FactionType): GameObject {
   8      return this.pikeman.position(position).faction(faction).build();
   9    }
  10
  11    public spawnMusketeer(position: Vector, faction: FactionType): GameObject {
  12      return this.musketeerBuilder.position(position).faction(faction).build();
  13    }
  14
  15    public spawnArcher(position: Vector, faction: FactionType): GameObject {
  16      return this.archerBuilder.position(position).faction(faction).build();
  17    }
  18  }

Simulation Patterns

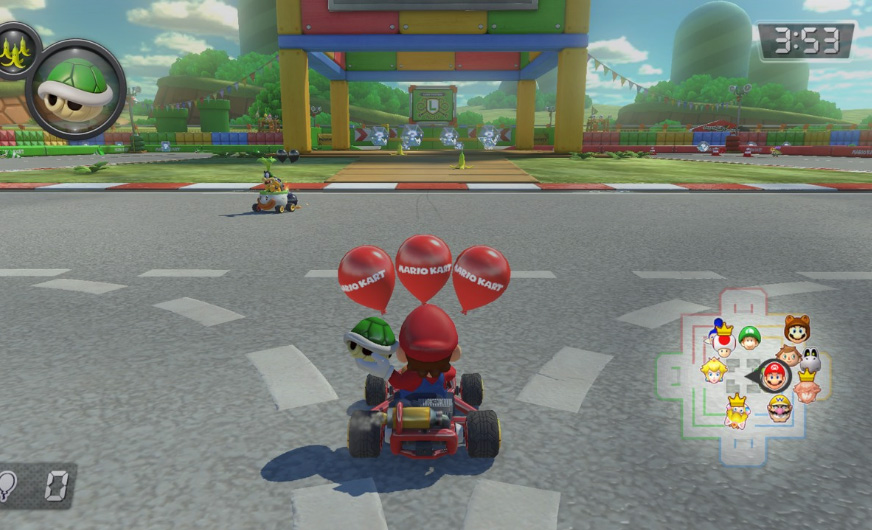

Sandbox

full simulation takes place within a space close to the player
simulation in an area further away is either omitted or simplified
often used in racing games and open-world games with persistent objects
can be implemented as a separate branch of the scene - the same objects are used, but certain components (rigidbody, animator,...) are disabled

Replay

allows to reproduce any state of a game at any time
all game entities must have a reproducible behavior (similar to multiplayer facility)
Solution a)
- store all input events from the player and re-play them in the same order
- not robust, may break on other platforms
Solution b)
- reversible counterpart for each function that modifies the game state
- too complicated, random access will be difficult
Solution c)
- snapshot the game state every frame (or by keyframes and interpolate)

Example: Doom Demo File

Lump file (*.LMP)
fixed time-loop at a rate of 35 FPS (handled by tic command)
the file contains only keyboard inputs at each tick
the game plays the demo, injecting input commands from the demo file
13B header + 4B data for each tick ~140B/s

Design practices: Summary

use builder to build new objects
use factory to manage construction of new objects
use prototype to clone already existing objects
use chain to chain up complex actions/processes
use selectors to access attributes that are deep in the scene hierarchy
use flag to collect a set of features of an object
use numeric state for a simple finite state machine
use transmuter to change a composition of components upon an object
use blackboard to store global game data

Lecture Summary

I know how chain works
I know something about responsibility ownership in component architecture
I know flyweight pattern
I know selector pattern
I know flag pattern
I know numeric state pattern
I know builder pattern
I know prototype pattern
I know factory pattern

Goodbye Quote

Machines aren't capable of evil. Humans make them that wayChrono Trigger

1
2	public async Task EnterDoorAction(Door door) {
3	this.Context.Player.BlockInput();
4	await new DoorAnimation(door).Open();
5	await new WalkAnimation(this.Context.Player).Walk(this.Context.Player.direction);
6	this.Context.Player.Hide(); // hide the sprite once it approaches the house
7	await new DoorAnimation(door).Close();
8	await Delay(500); // wait for 500 ms
9	}
10
11	.......
12
13	public async Task OnPlayerDoorApproached(Door door) {
14	await new EnterDoorAction(door);
15	await new SceneLoader(door.TargetScene);
16	}

1	IEnumerator Spawn () {
2	// Create a random wait time before the prop is instantiated.
3	float waitTime = Random.Range(minTimeBetweenSpawns, maxTimeBetweenSpawns);
4	// Wait for the designated period.
5	yield return new WaitForSeconds(waitTime);
6
7	// Instantiate the prop at the desired position.
8	Rigidbody2D propInstance = Instantiate(backgroundProp, spawnPos, Quaternion.identity) as Rigidbody2D;
9	// Restart the coroutine to spawn another prop.
10	StartCoroutine(Spawn());
11	}

1	if(asteroid.position.distance(rocket.position) <= MIN_PROXIMITY) { // detect proximity
2	rocket.runAnimation(ANIM_EXPLOSION); // react instantly and handle everything
3	asteroid.runAnimation(ANIM_EXPLOSION);
4	playSound(SOUND_EXPLOSION);
5	asteroid.destroy();
6	rocket.destroy();
7	}

1	// collision-system.ts
2	let collisions = this.collisionSystem.checkProximity(allGameObjects);
3	collisions.forEach(colliding => this.sendEvent(COLLISION_TRIGGERED, colliding));
4	// rocket-handler.ts
5	onCollisionTriggered(colliding) {
6	this.destroy();
7	this.sendEvent(ROCKET_DESTROYED);
8	}
9	// sound-component.ts
10	onGameObjectDestroyed() {
11	this.playSound(SOUND_EXPLOSION);
12	}

1	void() PlayerDie = {
2	DropBackpack();
3
4	self.weaponmodel="";
5	self.view_ofs = '0 0 -8';
6	self.deadflag = DEAD_DYING;
7	self.solid = SOLID_NOT;
8	self.flags = self.flags - (self.flags & FL_ONGROUND);
9	self.movetype = MOVETYPE_TOSS;
10
11	if (self.velocity_z < 10)
12	self.velocity_z = self.velocity_z + random()*300;
13
14	DeathSound();
15
16	if (self.weapon == IT_AXE) {
17	player_die_ax1 ();
18	return;
19	}
20
21	i = 1 + floor(random()*6);
22	if (i == 1)
23	player_diea1();
24	else if (i == 2)
25	player_dieb1();
26	else player_diec1();
27	};

1	// iterating inside out -> SLOW
2	for (i = 0 to size)
3	for (j = 0 to size)
4	do something with array[j][i]

1	// iterating outside in -> FAST
2	for (i = 0 to size)
3	for (j = 0 to size)
4	do something with array[i][j]

1	// assume only 50% active/visible objects
2	gameLoop(delta, absolute) {
3	for(let entity in this.entities) {
4	// 50% mispredictions
5	if(entity.ACTIVE) {
6	entity.update(delta, absolute);
7	}
8	if(entity.VISIBLE) {
9	entity.draw();
10	}
11	}
12	}

1	// hashing function
2	inline unsigned SDBMHash(unsigned hash, unsigned char c) {
3	return c + (hash << 6) + (hash << 16) - hash;
4	}
5
6	unsigned calc(const char* str, unsigned hash = 0) {
7	while (*str) {
8	// Perform the current hashing as case-insensitive
9	char c = *str;
10	hash = SDBMHash(hash, (unsigned char)tolower(c));
11	++str;
12	}
13	return hash;
14	}

1	#define GODOT_VARIANT_SIZE (16 + sizeof(int64_t))
2
3	typedef struct {
4	uint8_t _dont_touch_that[GODOT_VARIANT_SIZE];
5	} godot_variant;
6
7	typedef enum godot_variant_type {
8	// atomic types
9	GODOT_VARIANT_TYPE_NIL,
10	GODOT_VARIANT_TYPE_BOOL,
11	GODOT_VARIANT_TYPE_INT,
12	...

1	class Brainbot extends Unit {
2
3	private damage: number;
4	private currentWeapon: WeaponType;
5
6	constructor() {
7	super(UnitType.BRAIN_BOT);
8	}
9
10	init(damage: number, currentWeapons: WeaponType) {
11	this.damage = damage;
12	this.currentWeapon = currentWeapons;
13	}
14	}

1	public void OnTriggerEvent(Event evt, Context ctx) {
2
3	if(evt.Key == "LIFE_LOST") {
4	ctx.Lives--; // access the context
5	if(ctx.Lives <= 0) {
6	this.FireEvent("GAME_OVER");
7	}
8	}
9	}

1	const getPlayer(scene: Scene) => scene.findObjectByName('player');
2
3	const getAllUnits(scene: Scene) => scene.findObjectsByTag('unit_basic');
4
5	const getAllUnitsWithinRadius(scene: Scene, pos: Vector, radius: number) => {
6	return getAllUnits(scene).filter(unit => unit.pos.distance(pos) <= radius);
7	}
8
9	const getAllExits(scene: Scene) => {
10	const doors = scene.findObjectsByTag('door');
11	return doors.filter(door => !door.locked);
12	}

1	void AnimationCache::_clear_cache() {
2	while (connected_nodes.size()) {
3	connected_nodes.front()->get()
4	->disconnect("tree_exiting", callable_mp(this, &AnimationCache::_node_exit_tree));
5	connected_nodes.erase(connected_nodes.front());
6	}
7	path_cache.clear();
8	cache_valid = false;
9	cache_dirty = true;
10	}
11
12	void AnimationCache::_update_cache() {
13	cache_valid = false;
14
15	for (int i = 0; i < animation->get_track_count(); i++) {
16	// ... 100 lines of code
17	}
18
19	cache_dirty = false;
20	cache_valid = true;
21	}
22

1	public class Generator {
2	private final static AtomicInteger counter = new AtomicInteger();
3
4	public static int getId() {
5	return counter.incrementAndGet();
6	}
7	}

1	function* generateId() {
2	let id = 0;
3	while(true) {
4	yield id;
5	id++;
6	}
7	}
8
9	let newId = generateId().next();

1	class Generator {
2	static idCounter = 0;
3
4	getId(): number {
5	return Generator.idCounter++;
6	}
7	}

1	// stateless, the creature will jump each frame
2	updateCreature() {
3	if(eventSystem.isPressed(KeyCode.UP)) {
4	this.creature.jump();
5	}
6	}
7
8	// introduction of a state
9	updateCreature() {
10	if(eventSystem.isPressed(KeyCode.UP) && this.creature.state !== STATE_JUMPING) {
11	this.creature.changeState(STATE_JUMPING);
12	this.creature.jump();
13	}
14	}

1	class Builder {
2	private _position: Vector;
3	private _scale: Vector;
4
5	position(pos: Vector) {
6	this.position = pos;
7	return this;
8	}
9
10	scale(scale: Vector) {
11	this.scale = scale;
12	return this;
13	}
14
15	build() {
16	return new GameObject(this._position, this._scale);
17	}
18	}
19
20	new Builder().position(new Vector(12, 54)).scale(new Vector(2, 1)).build();

1	const superBallTransmuter = (entity: GameObject) => {
2	entity.removeComponent<BallBehavior>();
3	entity.addComponent(new SuperBallBehavior());
4	entity.state.speed = SUPER_BALL_SPEED;
5	entity.state.size = SUPER_BALL_SIZE;
6	return entity;
7	}

1	class UnitFactory {
2
3	private pikemanBuilder: Builder; // preconfigured to build pikemans
4	private musketeerBuilder: Builder; // preconfigured to build musketeers
5	private archerBuilder: Builder; // preconfigured to build archers
6
7	public spawnPikeman(position: Vector, faction: FactionType): GameObject {
8	return this.pikeman.position(position).faction(faction).build();
9	}
10
11	public spawnMusketeer(position: Vector, faction: FactionType): GameObject {
12	return this.musketeerBuilder.position(position).faction(faction).build();
13	}
14
15	public spawnArcher(position: Vector, faction: FactionType): GameObject {
16	return this.archerBuilder.position(position).faction(faction).build();
17	}
18	}
